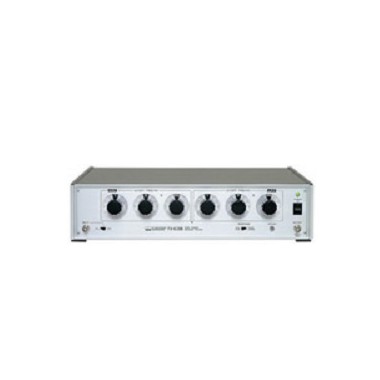

宽带滤波器FV-628B
 | Wide cutoff frequency range: LPF 1Hz to 10MHz, HPF 1Hz to 3MHz, and BPF combination of LPF and HPF |
| LPF can be switched over maximum flatness and phase linear responses. |
| Filter modesLPF, HPF, BPF or THRUFilter typesLPF: Maximum flatness or phase linear, switchableHPF: Maximum flatnessCutoff frequencyLPF: 1Hz to 10MHzHPF: 1Hz to 3MHzRolloff24dB/octNo. of channel1Input impedance1MΩ or 50 Ω//50pF, switchablePass band gain0 ± 0.7dB*Harmonic distortion0.3% or less (at 100kHz or less)S/N ratio60dB or greater (at 100MHz or less)DC offsetAdjustable to zeroPower requirementsAC100, 120, 220 or 240V ± 10%, switchableDimensions & Weight429(W) X 99(H) X 350(D)(mm), approx. 8kg |
